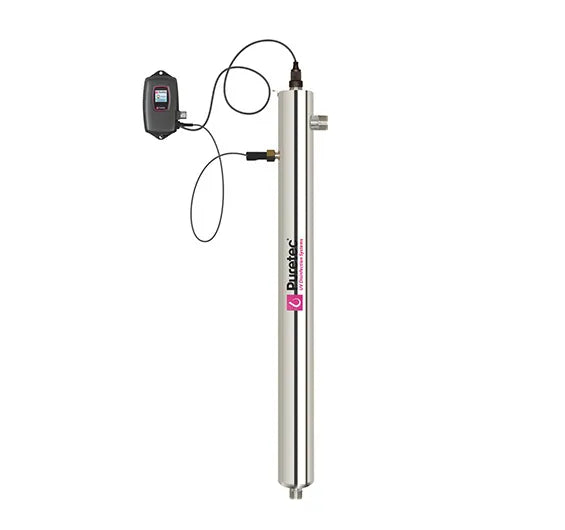

Radfire UV System, 56-106 LPM, 1" Conn
Radfire UV System, 56-106 LPM, 1" Conn
Looking for a feature-laden, premium UV system? Then Puretec Radfire’s RI-6K of UV systems should be your choice. When looking at this line, it is easy to see how this product is truly different from everything else in the market. Puretec Radfire’s state-of-the-art controller is a constant current electronic power source housed in a splash-proof case and comes standard with a “future proof” expandability port for future upgrades or options.
Features
Features
• Colour user interface with full diagnostics and warnings.
• “Future-proof” expandability port for future upgrades and options.
• Axial flow, 304 stainless steel reactor, polished reactors with integral sensor port to allow for sensor upgradeability in the future.
•1" Connection
•57 Litres per minute
•Future proof state-of-the-art controller
Specifications
Specifications
Ordering Code: RI-6K
Flow Rate @ 16 mJ/cm2: 114 Lpm
Flow Rate @ 30 mJ/cm2: 57 Lpm
Flow Rate @ 40 mJ/cm²: 45 Lpm
Connection: 1” MNPT
Replacement Lamp: RL6K
Replacement Sleeve: RQS6K
Operating Temperature: 2 - 40°C (36 - 104°F)
Power Supply: 90-265V / 50-60Hz
Warranty: 2 years^
Accessories: RI-SEN1 - UV sensor module, suits RI-6K
RI-SEN2 - UV sensor module, suits RI-10K and RI-17K
RI-SOL - Solenoid connection, suits RI-6K, RI-10K and RI-17K
RI-TMV - Water temperature management valve, ½” BSP
RI-VFC - Volt free connection, suits RI-6K, RI-10K, RI-17K
