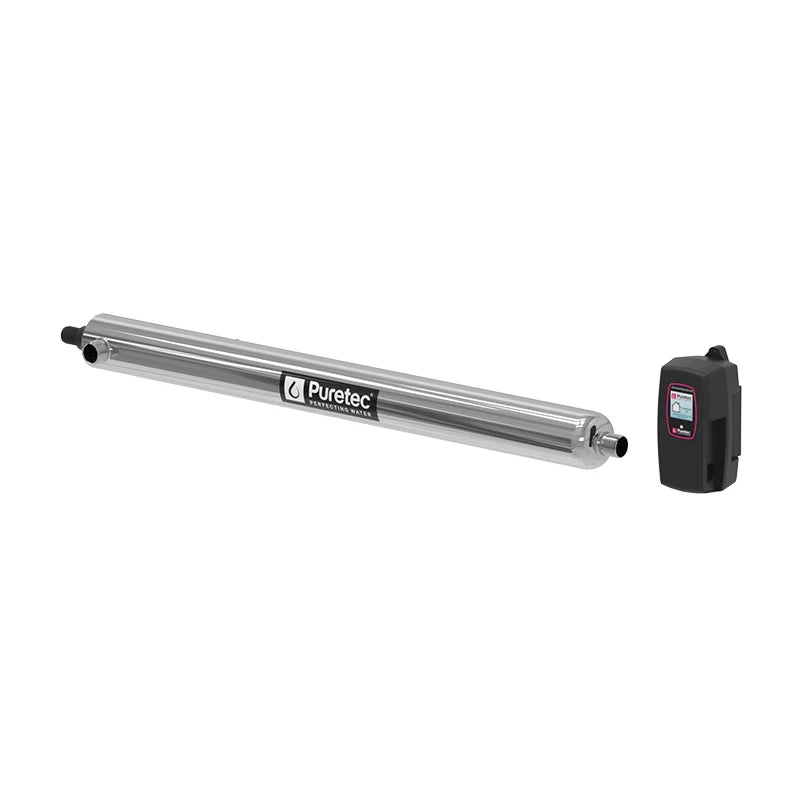

Radfire UV System, 151-290 LPM, 11/2" Conn
Radfire UV System, 151-290 LPM, 11/2" Conn
Looking for a feature-laden, premium UV system? Then Puretec Radfire’s RI-17K of UV systems should be your choice. When looking at this line, it is easy to see how this product is truly different from everything else in the market. Puretec Radfire’s state-of-the-art controller is a constant current electronic power source housed in a splash-proof case and comes standard with a “future proof” expandability port for future upgrades or options.
Features
Features
• Colour user interface with full diagnostics and warnings.
• “Future-proof” expandability port for future upgrades and options.
• Axial flow, 316 stainless steel reactor, polished reactors with integral sensor port to allow for sensor upgradeability in the future.
Specifications
Specifications
Ordering Code: RI-17K
Flow Rate @ 16 mJ/cm2: 295 Lpm
Flow Rate @ 30 mJ/cm2: 151 Lpm
Flow Rate @ 40 mJ/cm²: 120 Lpm
Connection: 1½” MNPT
Replacement Lamp: RL17K
Replacement Sleeve: RQS17K
Operating Temperature: 2 - 40°C (36 - 104°F) 2-70°C (36 - 118°F) with optional Hot Water Lamp
Power Supply: 90-265V / 50-60Hz
Warranty: 2 years^
Accessories: RI-SEN1 - UV sensor module, suits RI-6K
RI-SEN2 - UV sensor module, suits RI-10K and RI-17K
RI-SOL - Solenoid connection, suits RI-6K, RI-10K and RI-17K
RI-TMV - Water temperature management valve, ½” BSP
RI-VFC - Volt free connection, suits RI-6K, RI-10K, RI-17K
