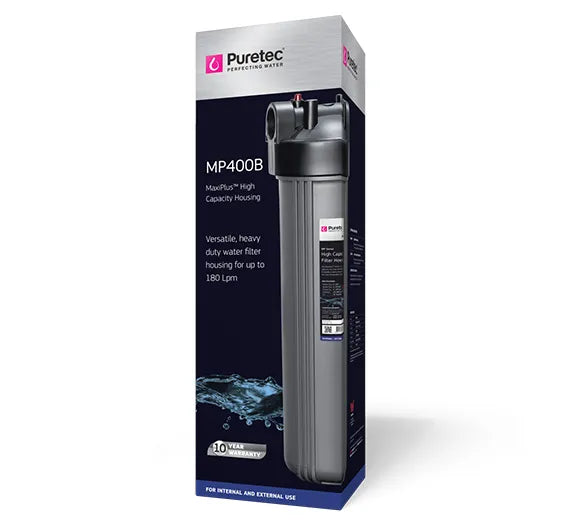

MP400B - Large Diameter Grey Filter Housing, 20", 1.5" conn incl spanner & bracket
MP400B - Large Diameter Grey Filter Housing, 20", 1.5" conn incl spanner & bracket
The Puretec MP400B filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy sediment applications. The extra large housings allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications. Sumps are constructed of durable reinforced polypropylene and are available in both 10” and 20” lengths.
Includes spanner wrench and mounting bracket
Features
Features
• High capacity filter housings.
• Features double O-ring seals for maximum durability.
• Ribbed design provides robust housing for years of trouble-free service.
• Compact and economical, ideal for duplex systems.
• Wide variety of cartridge replacements available.
• Internal and external use to suit different applications.
• UV stabilised.
Specifications
Specifications
Ordering Code - MP400B-LT
Size - 20”
Min/Max Temperature - 0 - 52°C
Min/Max Pressure - 0 - 875* kPa
Maximum Flow Rate - 180 Lpm
Connection - 1½” (40 mm)
Warranty - 10 years^
