Hybrid P6 Gull Wing Cabinet, Triple Filter & UV System, 86lpm Grundfos Pump incl
Hybrid P6 Gull Wing Cabinet, Triple Filter & UV System, 86lpm Grundfos Pump incl
- Weather proof triple rainwater filter with UV
- 86 LPM, 1" connection
- CMB-SP 5-47 pump (0.9kW)

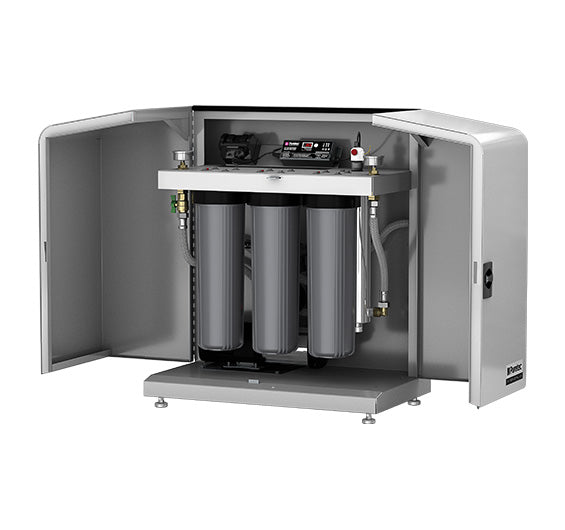

The Puretec Hybrid-P6 is an all-in-one filtration system including pump, 3 stage filtration and finishing with UV sterilisation. This sleek, practical and high-quality system ensures you have pressurised safe and delicious rainwater.

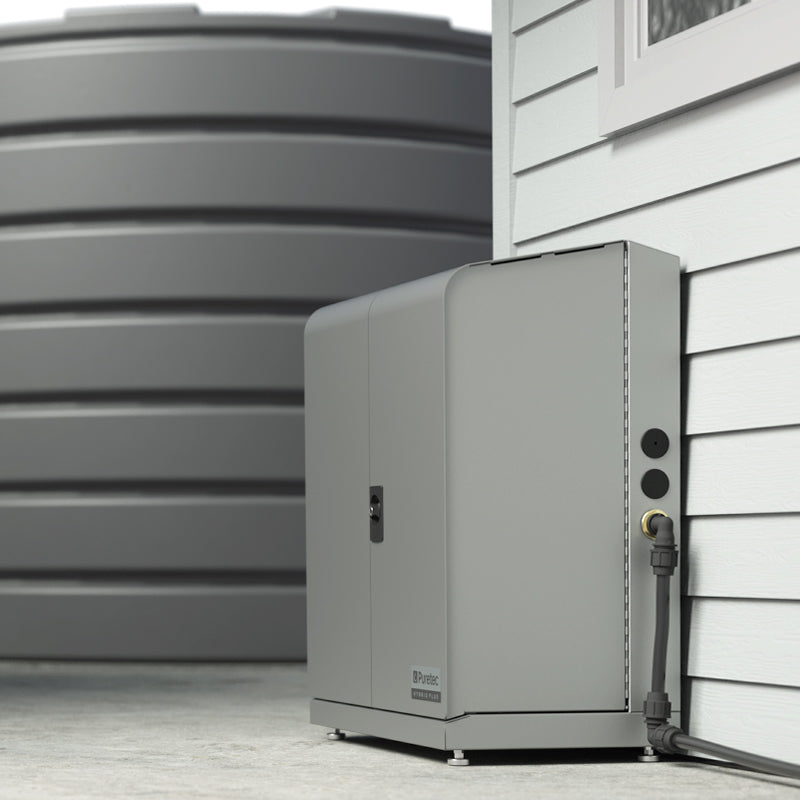

The patented HybridPlus system is designed to sit neatly against a wall, fence or tank, or can also be freestanding. It features a lockable cabinet with gull-wing style access doors for ease of access for maintenance and also incorporates adjustable feet to ensure a neat and tidy finished installation.
Features
Features
• Designed specifically for rainwater, the Puretec HybridPlus is a complete plug & play package with pump, filters & UV in one unit that is weatherproof, rodent-proof, tamper proof and reduces pump noise.
• Bacteria protection - Kills 99.9% of E. Coli, Giardia and Cryptosporidium Cysts with Radfire ™ ultraviolet technology, natural process that’s completely eco-friendly and chemical-free.
• Unique connection system so that water flow can be connected to the left or right-hand sides for fast, easy and neat installation.

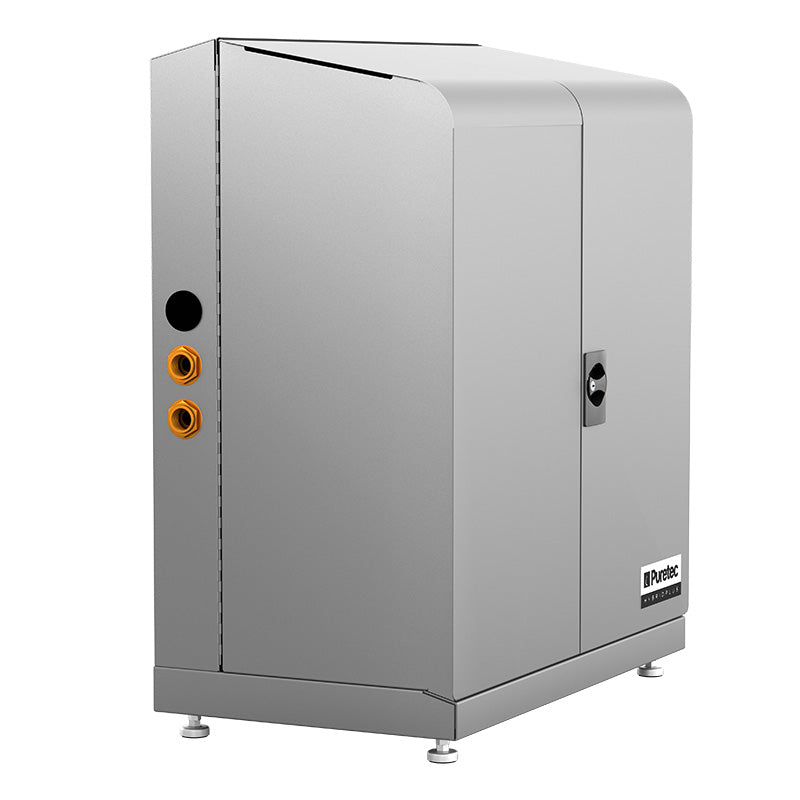

• Patented cabinet with gull-wing style access doors looks great whilst providing easy access for maintenance, is corrosion resistant and lockable to prevent tampering.
• Neatly concealed ventilation to allow airflow and heat dissipation.
• Suitable for other water supplies - depending on water quality (refer to Puretec Customer Care).
Specifications
Specifications
Ordering Code: HYBRID-P6-LT
Replacement Cartridge(s)
Stage 1 filtration: PL05MP2
Stage 2 filtration: CB05MP2
Stage 3 filtration: PX01MP2
UV Lamp: RL6
Quartz Sleeve: RQS6
Grundfos pump model: CMB-SP 5-47
Rated power: 0.9 kW
Pressure controller: PM2
Mains to rains controller: not included
Power Supply: 220-240 VAC / 50 Hz
Maximum current consumption: 5.4-5.0 A
Water temperature range: 0-52°C (protect from freezing)
Self-priming: 4 m
UV dosage @40mJ/cm2: 54 Lpm
UV dosage @30mJ/cm2: 70 Lpm
UV dosage @16mJ/cm2: 130 Lpm
Pump flow rate: 86 Lpm
Connection: 1” BSP [25mm]
Warranty: 3 years^
