Bag Filter Unit Size 1-50-316
Bag Filter Unit Size 1-50-316

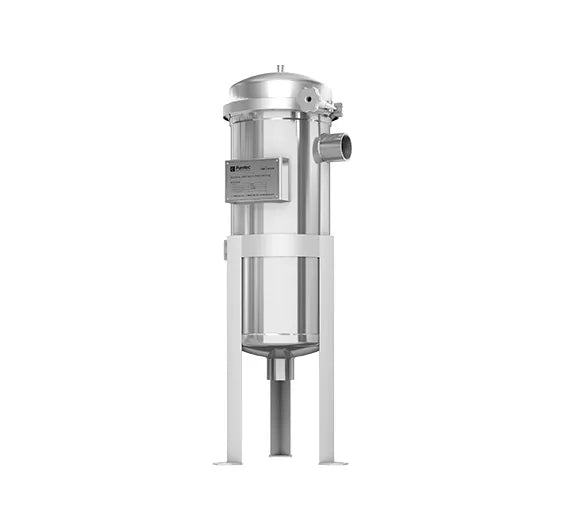

The Puretec SSBH-1-50-316 stainless steel bag filter housings offer a variety of solutions for your large scale, heavy-duty filtration needs. Simple to install and maintain, these housings are ideal for schools, restaurants, farms, institutions and industrial use.
Unlike cartridge filters or strainers, all the contaminants are captured within the bag and do not pass into a process stream when a bag is replaced.
An economical bag filter can be used to improve the life of more expensive down stream filters and is often placed first in a filter train. Considerable savings can be made for a modest investment.
Features
Features
•Low cost, high volume nominal filtration.
•304 stainless steel non-coded housing as standard polished internally and externally.
•Quick release clamp for simple bag removal from the top of the housing.
•Ideal for the filtration of water, effluent water, and recirculation water.
•Pre UV or RO equipment and cooling tower applications.
•Can withstand temperatures up to a maximum of 80°C
Specifications
Specifications
Material of Construction: 304 Stainless Steel
Flow Rate: 20 m3/hr (340 Lpm)*
Bag Size: Size 1
Connection: 2” BSPF
Maximum Pressure: 1034˜ kPa
Maximum Temperature: 80°C (@ 150ppm Chloride)
